Ascent Square Drain Wetroom Shower Base

£396.00£703.20

Product Information:

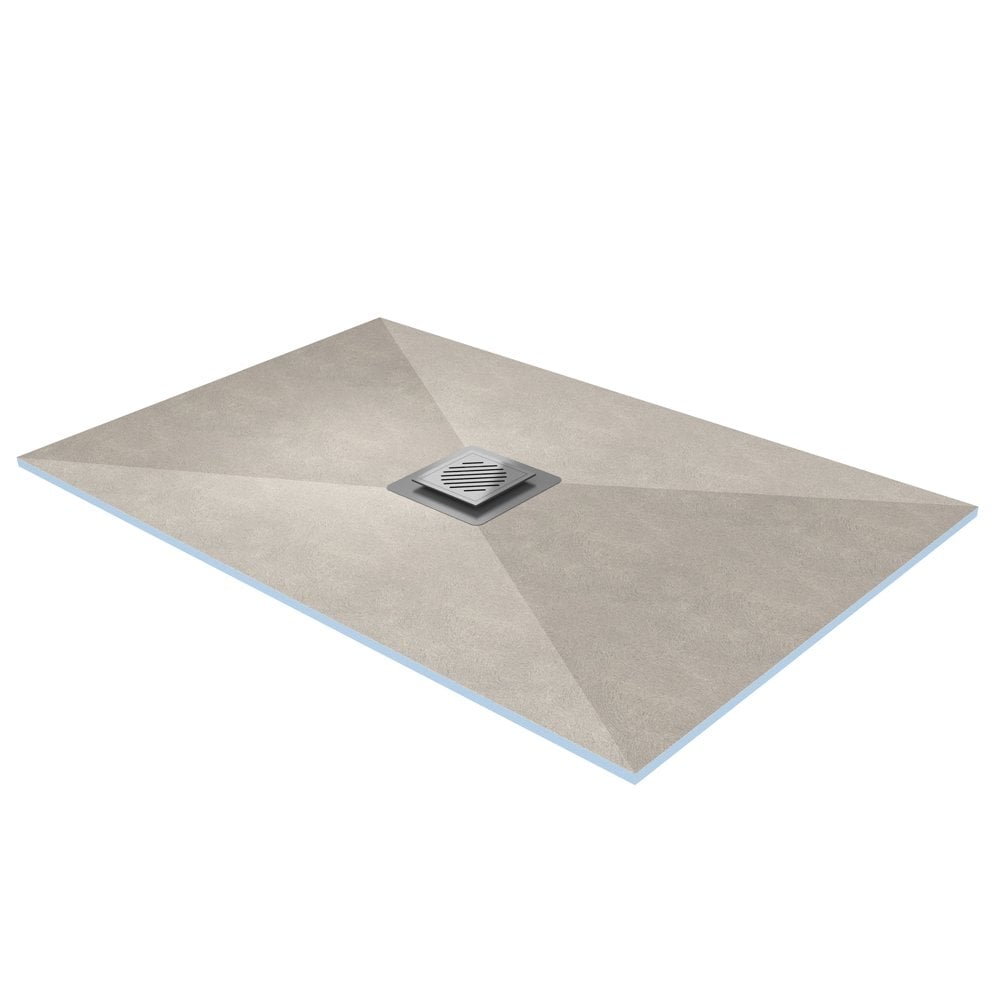

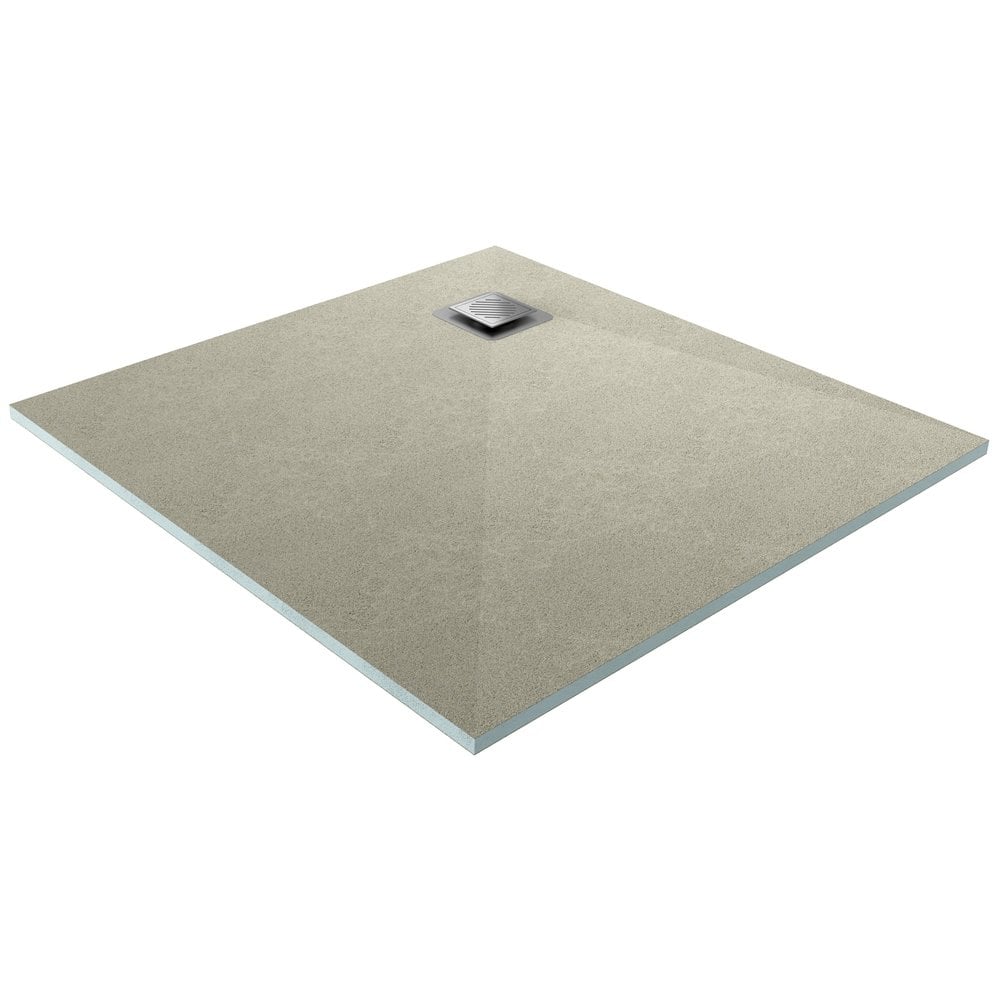

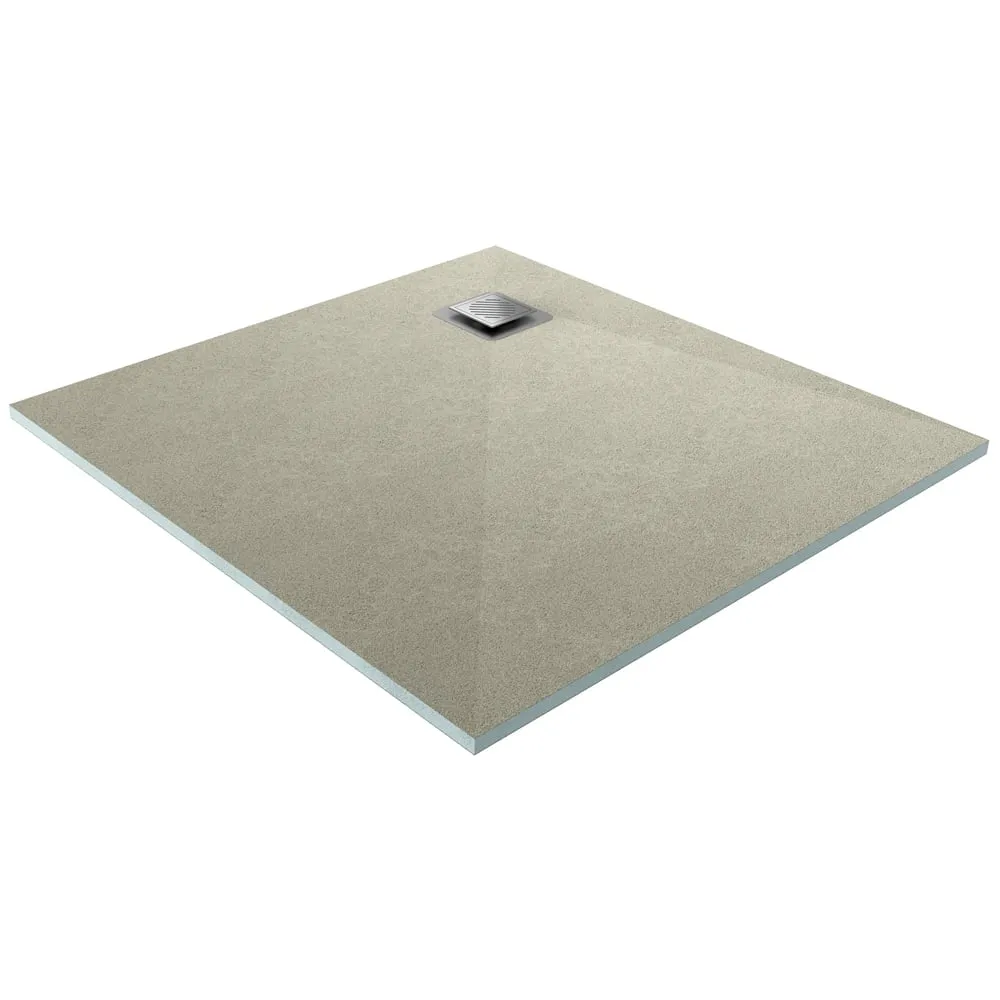

  • Pre-formed Wetroom Shower Base
  • Designed for walk-in shower and Wetroom applications
  • Floor level panels that can be trimmed to size on site
  • Ready to receive a tiled finish
  • Material: Waterproof extruded polystyrene (XPS), covered both sides in a combination of polymer resin and quartz (compatible with most tile adhesives)
  • Suitable for use with underfloor heating
  • 4 Drain options available
  • Rotate shower base for best waste position


Shower Base Dimensions:

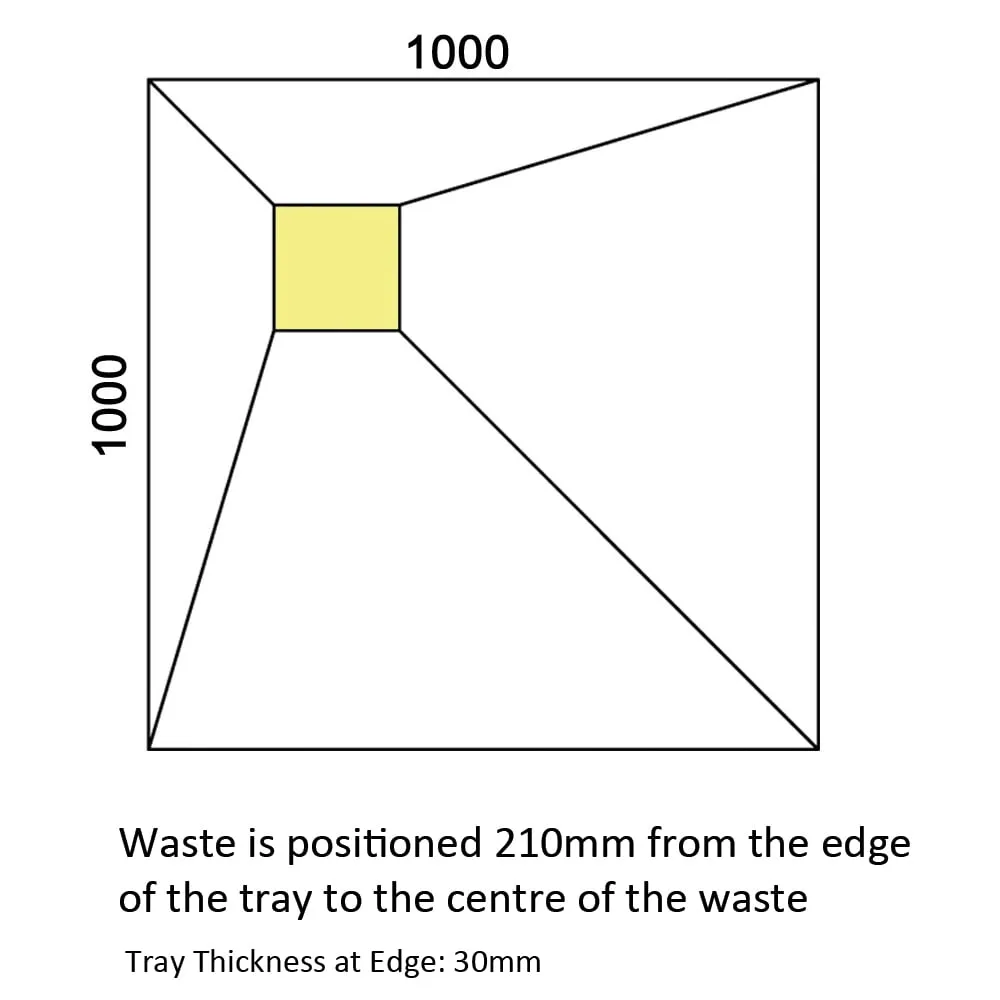

  • For trays with a corner waste – waste is positioned 210mm from the edge of the tray to the centre of the waste.


Square Drain Information:

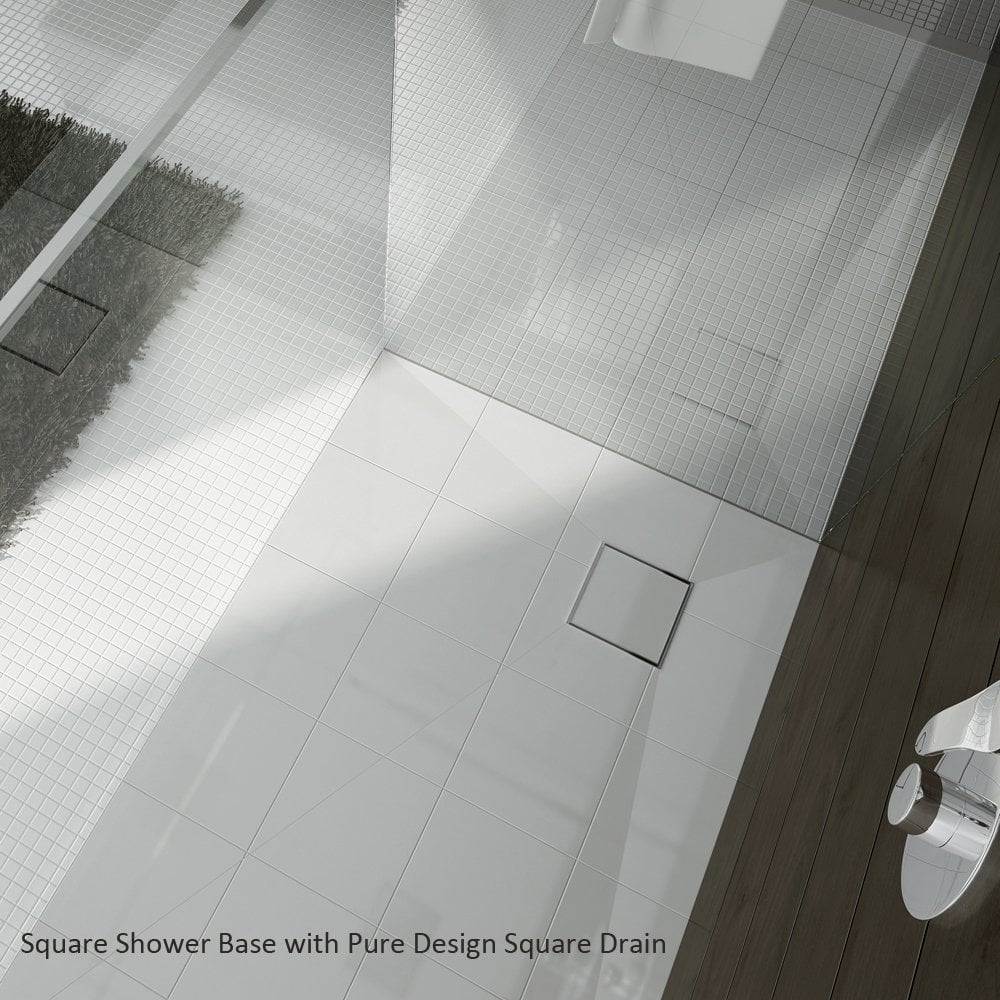

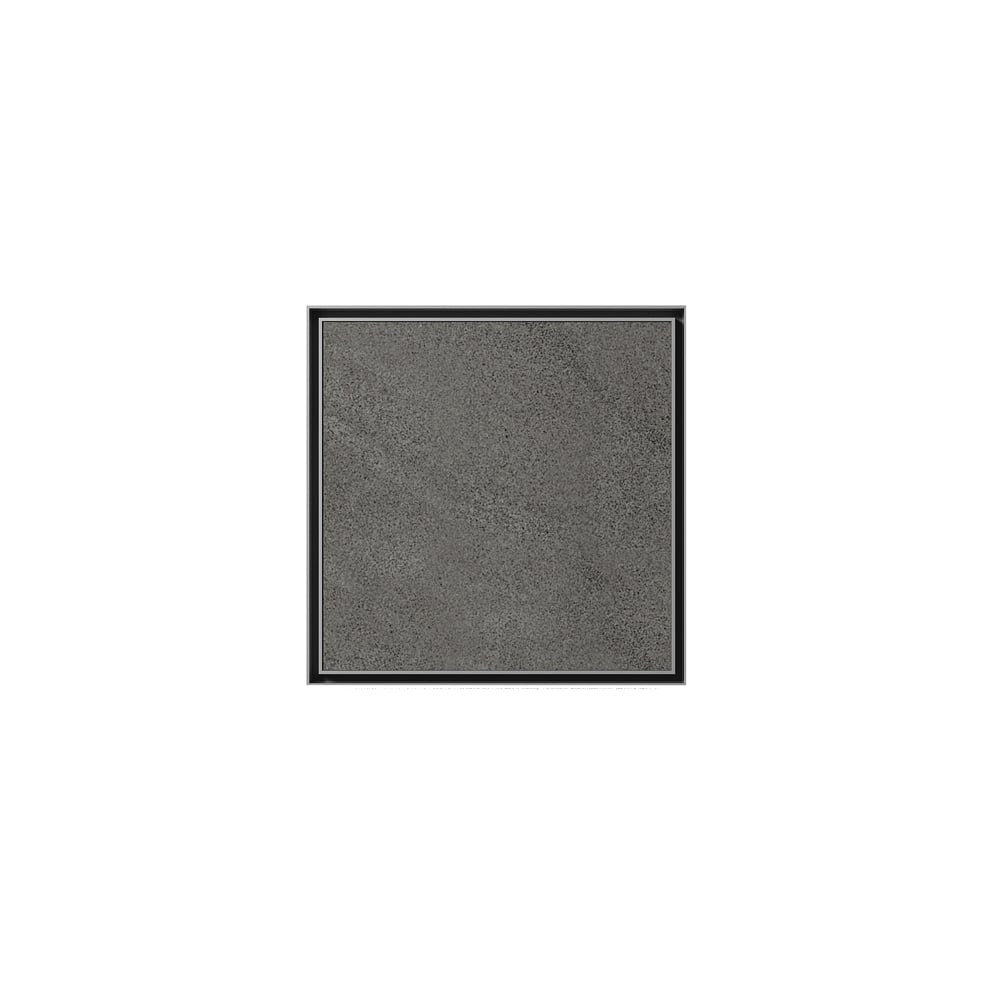

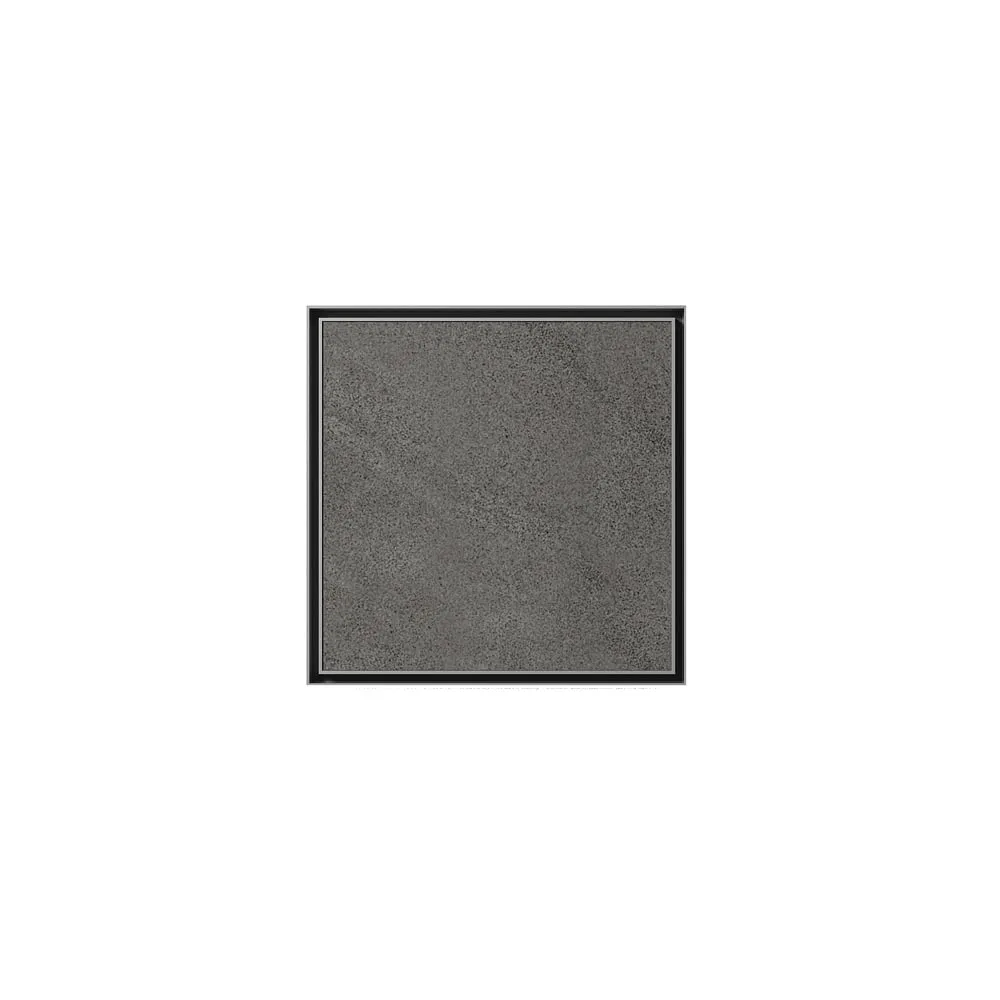

  • Pure Drain – ready for tiling with customers choice of tiles (not supplied)

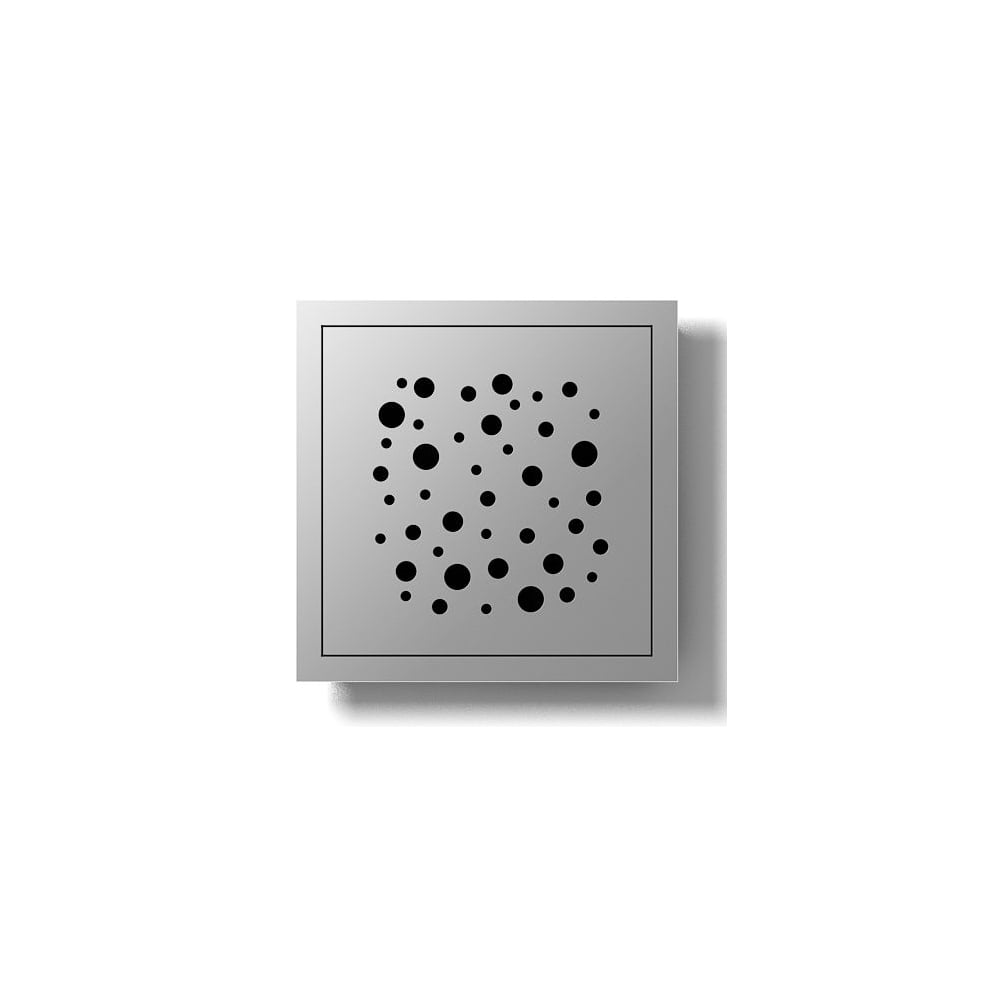

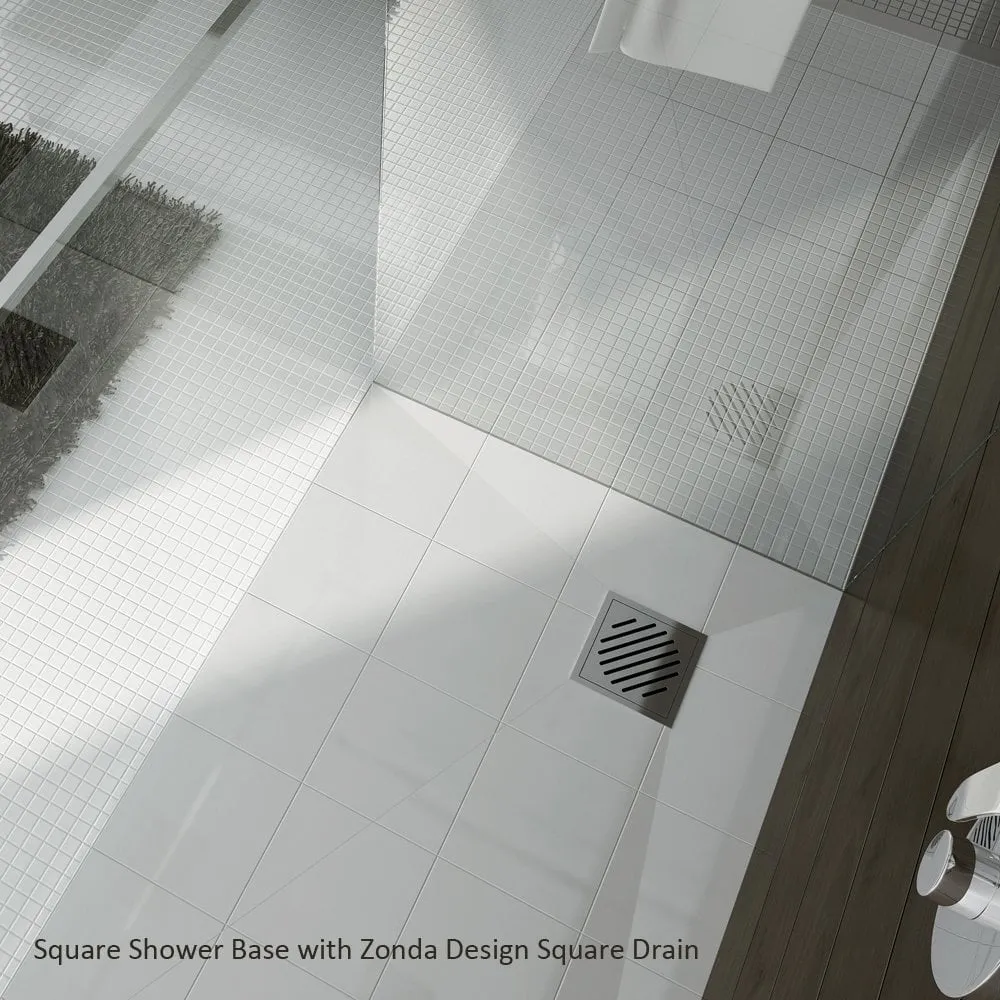

  • Zonda Drain – Stainless Steel grating in mirror Chrome finish

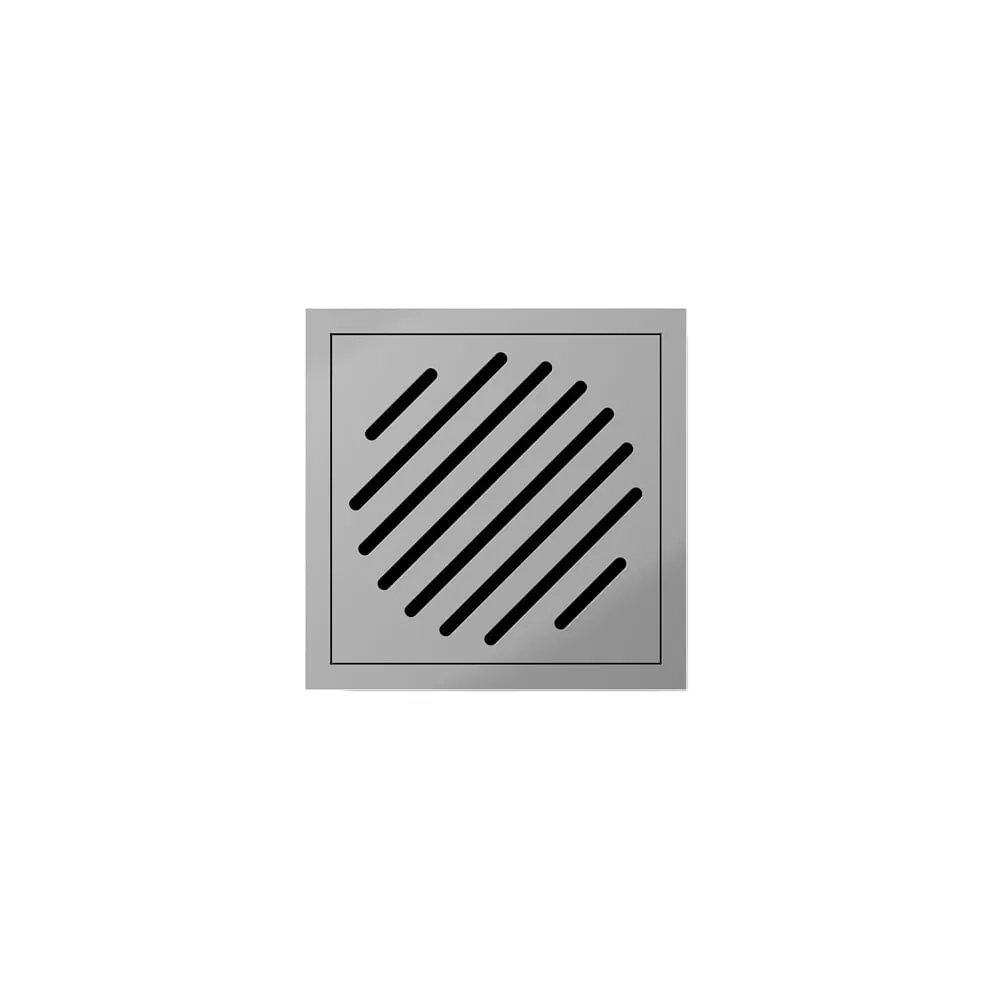

  • Mistral Drain – Stainless Steel grating in mirror Chrome finish

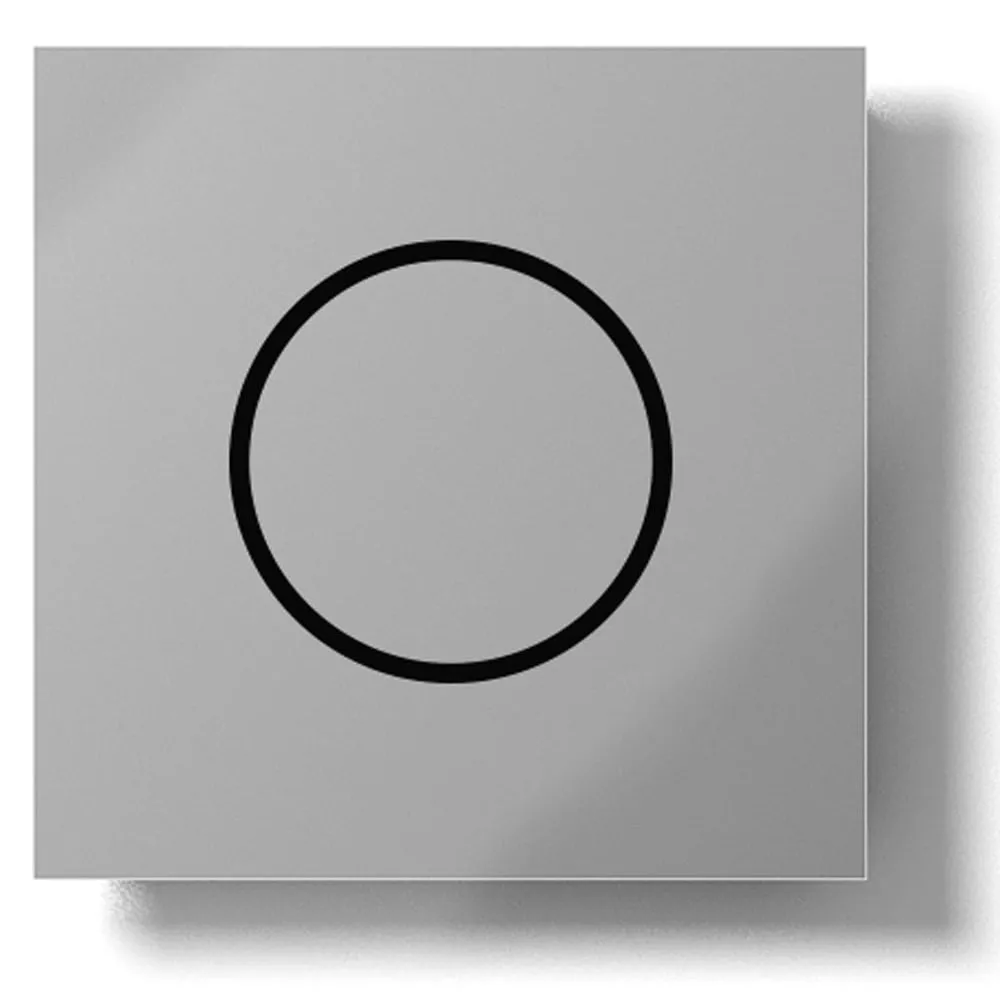

  • Ponente Drain – Stainless Steel drain in mirror finish
  • All Drains include flange, membrane and trap




Technical/Installation Information:

  • Can be laid directly onto existing wooden or concrete floors but must be supported over it’s entire area, including trap.
  • If the shower base is to be laid directly onto the existing floor boards, they must be in good condition and must be screwed down at very close centres.
  • When the shower base is laid onto a concrete floor, the surface below the shower base must be perfectly flat, with a channel for the trap and waste pipe.
  • Care must be taken when preparing the slopes to the drain in all applications.
  • 10 Year Manufacturers Guarantee




Price is for shower base and drain only.
