Ascent Linear Drain Wetroom Shower Base

Ascent Linear Drain Wetroom Shower Base

Product Information:

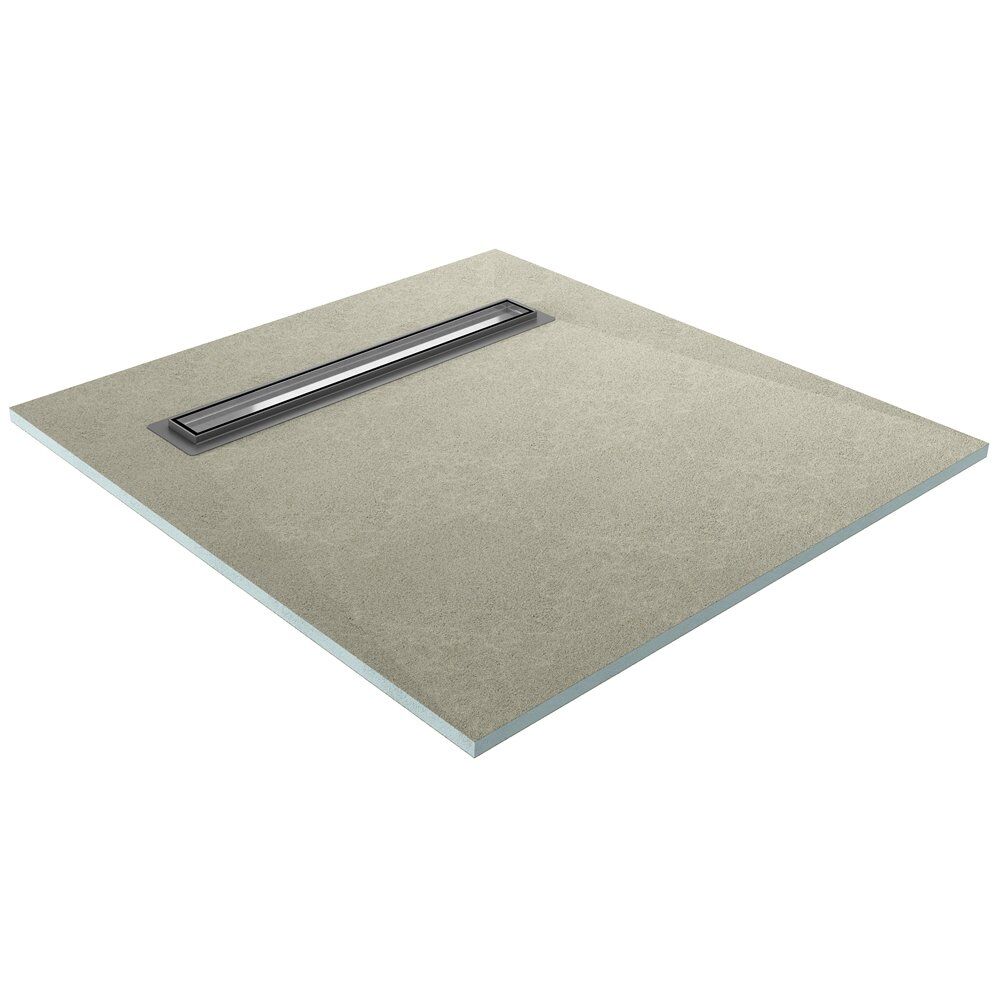

• Pre-formed Wetroom Shower Base
• Designed for walk-in shower and wetroom applications
• Floor level panels that can be trimmed to size on site
• Ready to receive a tiled finish
• Material: Waterproof extruded polystyrene (XPS), covered both sides in a combination of polymer resin and quartz (compatible with most tile adhesives)
• Suitable for use with underfloor heating
• 4 Drain options available
• Rotate shower base for best waste position

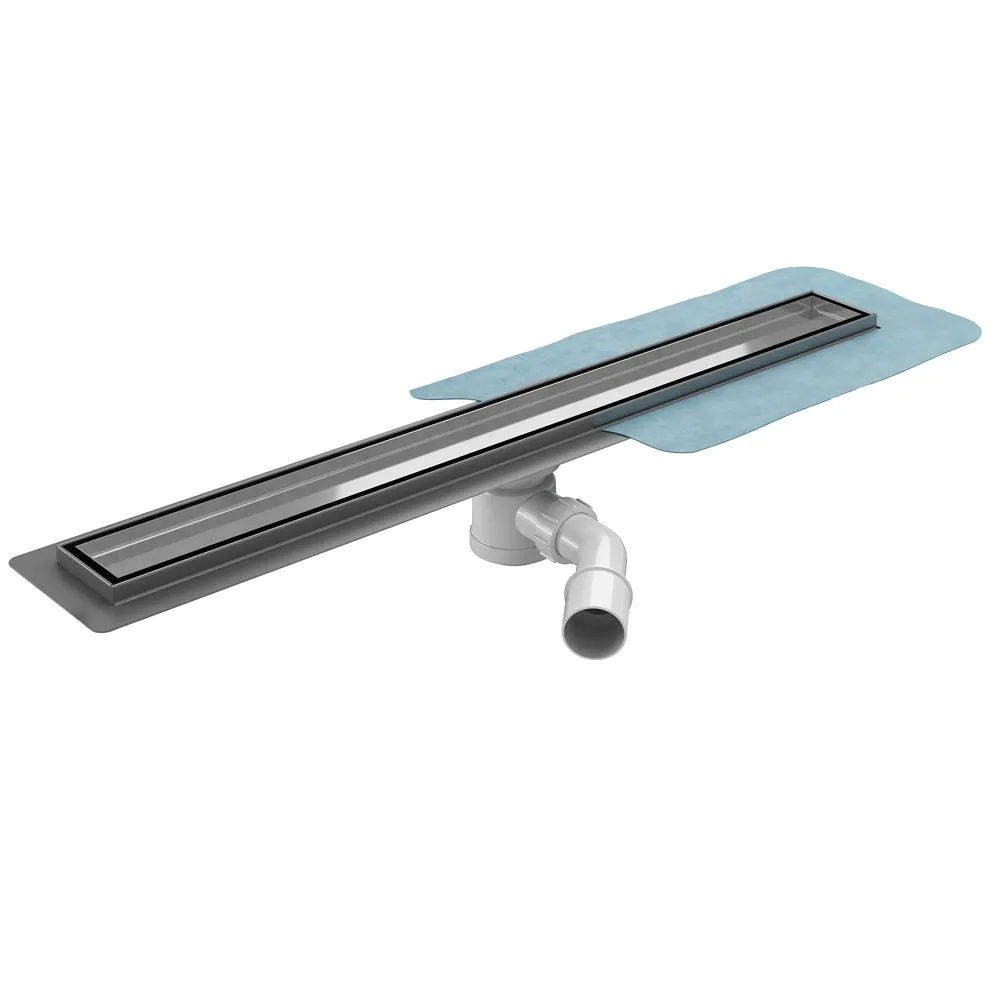

Linear Drain Information:

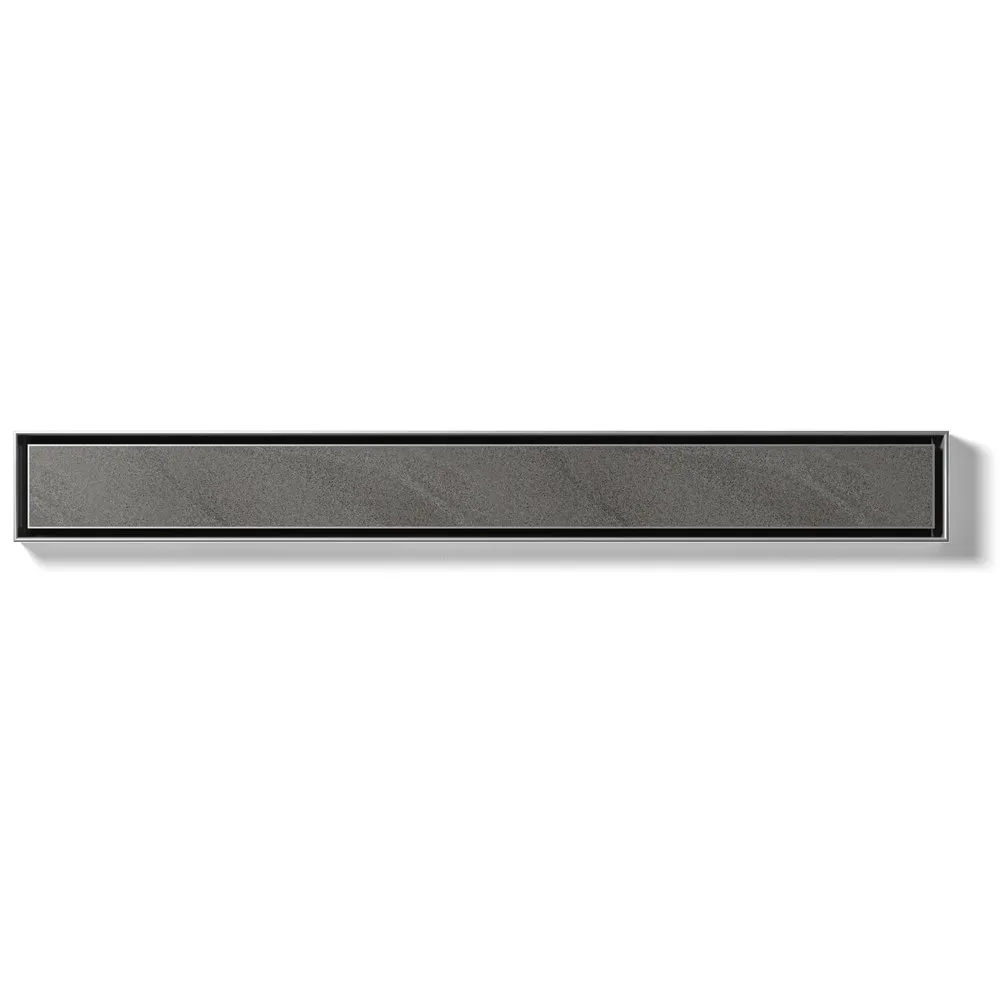

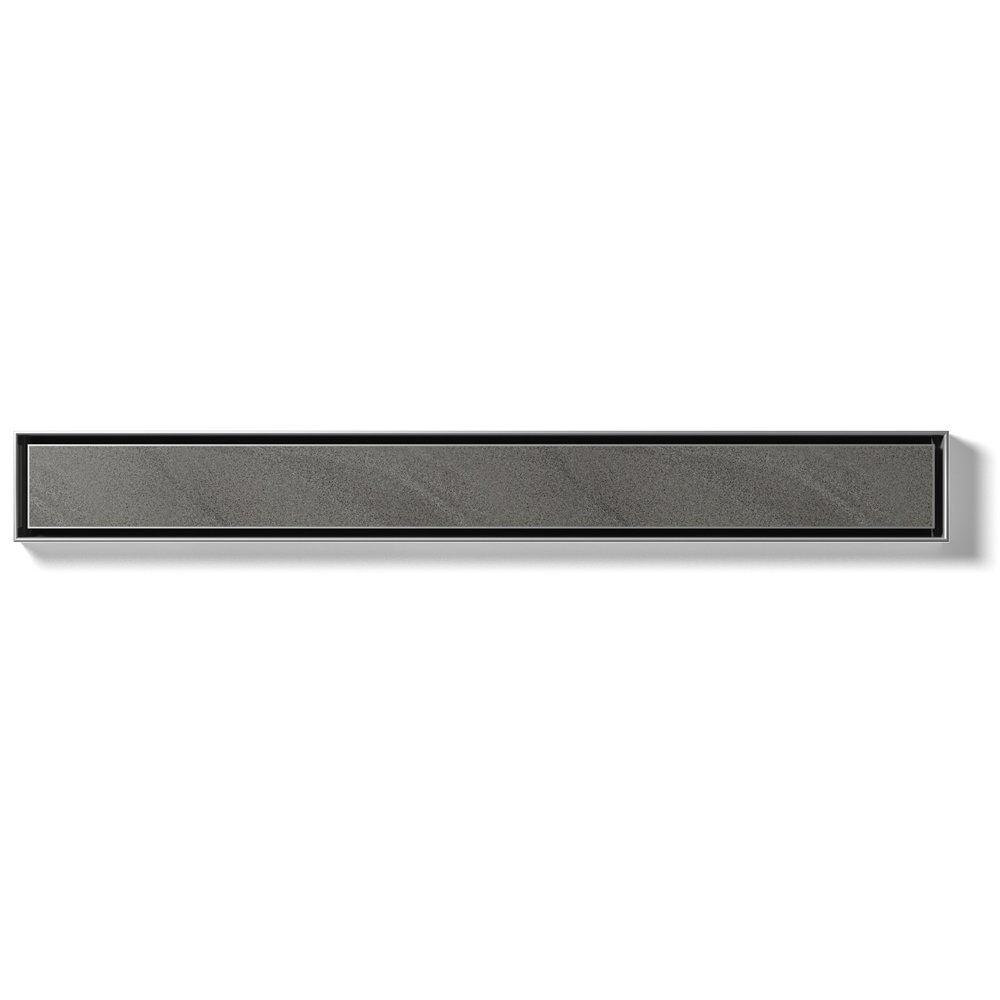

• Pure Drain – ready for tiling with customers choice of tiles (not supplied)

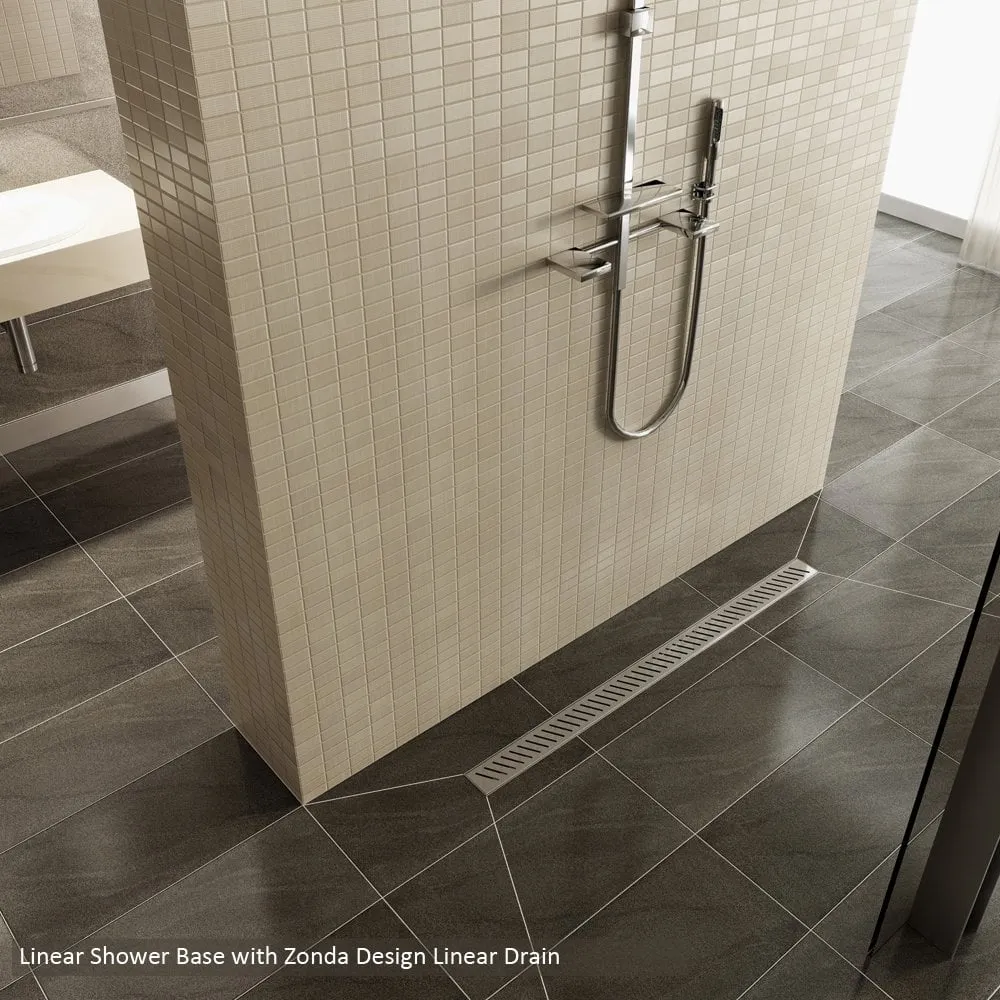

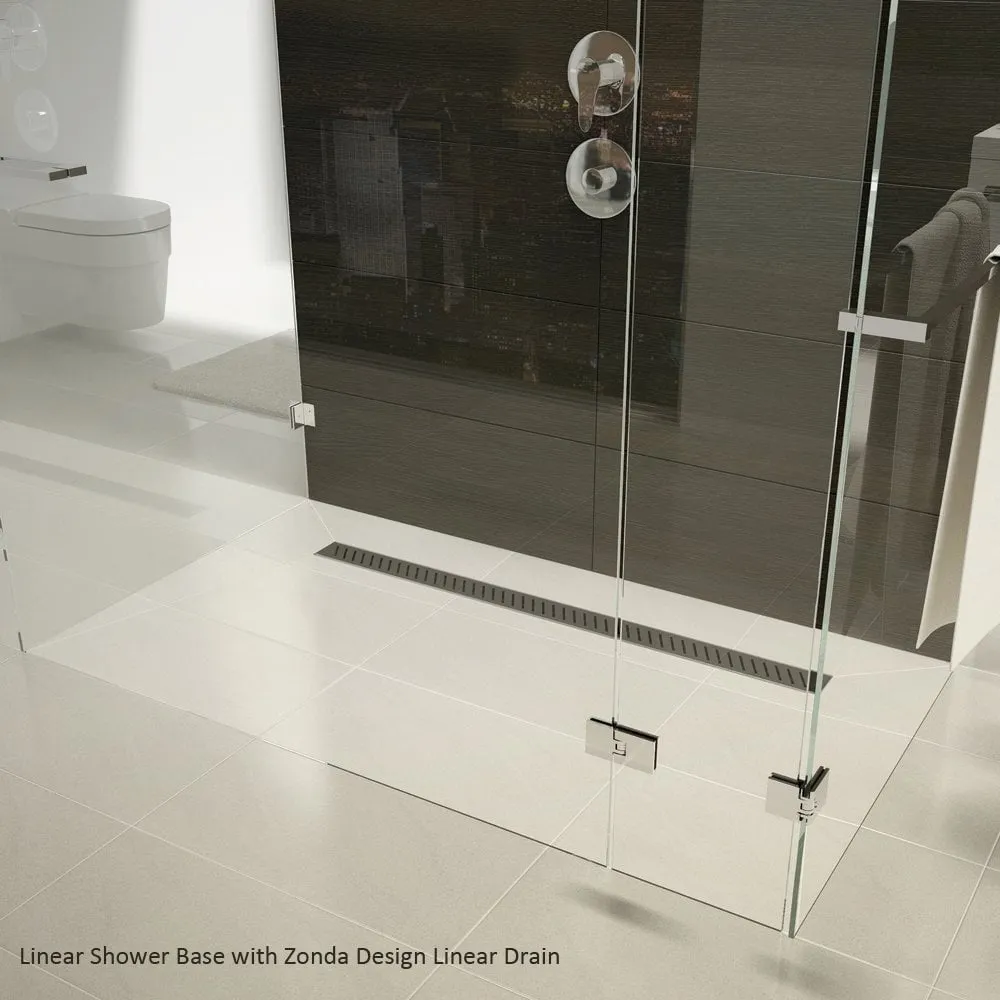

• Zonda Drain – Stainless Steel grating in mirror Chrome finish

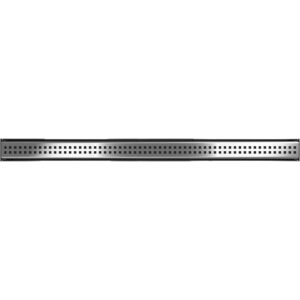

• Mistral Drain – Stainless Steel grating with circular designs in mirror chrome finish
• Ponente Drain – Stainless Steel grating with mirror finish
• All Drains include flange, membrane and trap

Technical/Installation Information:

• Can be laid directly onto existing wooden or concrete floors but must be supported over it’s entire area, including trap.
• If the shower base is to be laid directly onto the existing floor boards, they must be in good condition and must be screwed down at very close centres.
• When the shower base is laid onto a concrete floor, the surface below the shower base must be perfectly flat, with a channel for the trap and waste pipe.
• Care must be taken when preparing the slopes to the drain in all applications.
• 10 Year Manufacturers Guarantee

Price is for shower base and drain only.
